Python Code Conventions

We use standardized code conventions to ensure uniformity across all Cortex XSOAR Integrations. This section outlines our code conventions.

New integrations and scripts should follow these conventions. When working on small fixes and modifications to existing code, follow the conventions used in the existing code.

Note: Cortex XSOAR supports also JavaScript integrations and scripts. Our preferred development language is Python, and all new integrations and scripts should be developed in Python, which also provides a wider set of capabilities compared to the available JavaScript support. Simple scripts may still be developed in JavaScript using the conventions provided by the default script template used in the Cortex XSOAR IDE.

Example Code and Templates

For an example of a Hello World integration see HelloWorld.

For quick starts templates see Templates directory.

Python 2 vs 3

All new integrations and scripts should be written in Python 3. Python 2 is supported only for existing integrations and scripts.

Imports

You define imports and disable insecure warning at the top of the file.

import demistomock as demisto
from CommonServerPython import *
from CommonServerUserPython import *
''' IMPORTS '''
import json
import requests
# Disable insecure warnings
requests.packages.urllib3.disable_warnings()

Constants

You define constants in the file below the imports. It is important that you do not define global variables in the constants section.

''' CONSTANTS '''
DATE_FORMAT = "%Y-%m-%dT%H:%M:%SZ"

IMPORTANT: The example below shows the incorrect way to name constants.

apiVersion = "v1"
url = demisto.params().get("url")

Main function

These are the best practices for defining the Main function.

  • Create the main function and in the main extract all the integration parameters.
  • Implement the _command function for each integration command (e.g., say_hello_command(client, demisto.args()))
  • To properly handle exceptions, wrap the commands with try/except in the main. The return_error() function receives error message and returns error entry back into Cortex XSOAR. It will also print the full error to the Cortex XSOAR logs.
  • For logging, use the demisto.debug("write some log here") function.
  • In the main function, initialize the Client instance, and pass that client to _command functions.
def main():
"""
PARSE AND VALIDATE INTEGRATION PARAMS
"""
username = demisto.params().get('credentials').get('identifier')
password = demisto.params().get('credentials').get('password')
# Remove trailing slash to prevent wrong URL path to service
base_url = urljoin(demisto.params()['url'], '/api/v1/suffix')
verify_certificate = not demisto.params().get('insecure', False)
# How many time before the first fetch to retrieve incidents
first_fetch_time = demisto.params().get('fetch_time', '3 days').strip()
proxy = demisto.params().get('proxy', False)
demisto.debug(f'Command being called is {demisto.command()}')
try:
client = Client(
base_url=base_url,
verify=verify_certificate,
auth=(username, password),
proxy=proxy)
if demisto.command() == 'test-module':
# This is the call made when pressing the integration Test button.
result = test_module(client)
return_results(result)
elif demisto.command() == 'fetch-incidents':
# Set and define the fetch incidents command to run after activated via integration settings.
next_run, incidents = fetch_incidents(
client=client,
last_run=demisto.getLastRun(),
first_fetch_time=first_fetch_time)
demisto.setLastRun(next_run)
demisto.incidents(incidents)
elif demisto.command() == 'helloworld-say-hello':
return_results(say_hello_command(client, demisto.args()))
# Log exceptions
except Exception as e:
return_error(f'Failed to execute {demisto.command()} command. Error: {str(e)}')
if __name__ in ('__main__', '__builtin__', 'builtins'):
main()

Client class

These are the best practices for defining the Client class.

  • Client should inherit from BaseClient. BaseClient defined in CommonServerPython.
  • Client is necessary in order to prevent passing arguments from one function to another function, and to prevent using global variables.
  • Client will contain the _http_request function.
  • Client will implement the 3rd party service API.
  • Client will contain all the necessary params to establish connection and authentication with the 3rd party API.
class Client(BaseClient):
"""
Client will implement the service API, should not contain Cortex XSOAR logic.
Should do requests and return data
"""
def get_ip_reputation(self, ip: str) -> Dict[str, Any]:
"""Gets the IP reputation using the '/ip' API endpoint
:type ip: ``str``
:param ip: IP address to get the reputation for
:return: dict containing the IP reputation as returned from the API
:rtype: ``Dict[str, Any]``
"""
return self._http_request(
method='GET',
url_suffix=f'/ip',
params={
'ip': ip
}
)
def get_alert(self, alert_id: str) -> Dict[str, Any]:
"""Gets a specific HelloWorld alert by id
:type alert_id: ``str``
:param alert_id: id of the alert to return
:return: dict containing the alert as returned from the API
:rtype: ``Dict[str, Any]``
"""
return self._http_request(
method='GET',
url_suffix=f'/get_alert_details',
params={
'alert_id': alert_id
}
)

Example - client instance using API KEY

api_key = demisto.params().get('apikey')
# get the service API url
base_url = urljoin(demisto.params()['url'], '/api/v1')
# if your Client class inherits from BaseClient, SSL verification is
# handled out of the box by it, just pass ``verify_certificate`` to
# the Client constructor
verify_certificate = not demisto.params().get('insecure', False)
headers = {
'Authorization': f'Bearer {api_key}'
}
client = Client(
base_url=base_url,
verify=verify_certificate,
headers=headers,
proxy=proxy
)

Example - client instance using Basic Authentication

username = demisto.params().get('credentials').get('identifier')
password = demisto.params().get('credentials').get('password')
# get the service API url
base_url = urljoin(demisto.params()['url'], '/api/v1')
# if your Client class inherits from BaseClient, SSL verification is
# handled out of the box by it, just pass ``verify_certificate`` to
# the Client constructor
verify_certificate = not demisto.params().get('insecure', False)
client = Client(
base_url=base_url,
verify=verify_certificate,
auth=(username, password),
proxy=proxy
)

Command Functions

These are the best practices for defining the command functions.

  • Each integration command should have a corresponding _command function.
  • Each _command function should use Client class functions.
  • Each _command function should be unit testable. This means you should avoid using global functions, such as demisto.results(), return_error(), or return_results().
  • The _command function will receive client instance and args (demisto.args() dictionary).
  • The _command function will return 3 variables: readable_output, outputs, raw_response
  • To return results to the War Room, in the main use return_results(say_hello_command(client, demisto.args())).
def say_hello_command(client, args):
"""
Returns Hello {somename}
Args:
client: HelloWorld client
args: all command arguments
Returns:
Hello {someone}
readable_output: This will be presented in Warroom - should be in markdown syntax - human readable
outputs: Dictionary/JSON - saved in incident context in order to be used as input for other tasks in the
playbook
raw_response: Used for debugging/troubleshooting purposes - will be shown only if the command executed with
raw-response=true
"""
name = args.get('name')
result = client.say_hello(name)
# readable output will be in markdown format - https://www.markdownguide.org/basic-syntax/
readable_output = f'## {result}'
outputs = {
'name': name,
'hello': result
}
results = CommandResults(
outputs_prefix='HelloWorld.Result',
outputs_key_field='name',
outputs=outputs,
readable_output=readable_output,
raw_response=result
)
return results
def main():
"""
SOME CODE HERE...
"""
try:
client = Client(
base_url=server_url,
verify=verify_certificate,
auth=(username, password),
proxy=proxy)
"""
SOME CODE HERE...
"""
if demisto.command() == 'helloworld-say-hello':
return_results(say_hello_command(client, demisto.args()))
# Log exceptions
except Exception as e:
return_error(f'Failed to execute {demisto.command()} command. Error: {str(e)}')

IOC Reputation Commands

There are two implementation requirements for reputation commands (aka !file, !email, !domain, !url, and !ip) that are enforced by checks in the demisto-sdk.

  • The reputation command's argument of the same name must have default set to True.
  • The reputation command's argument of the same name must have isArray set to True.

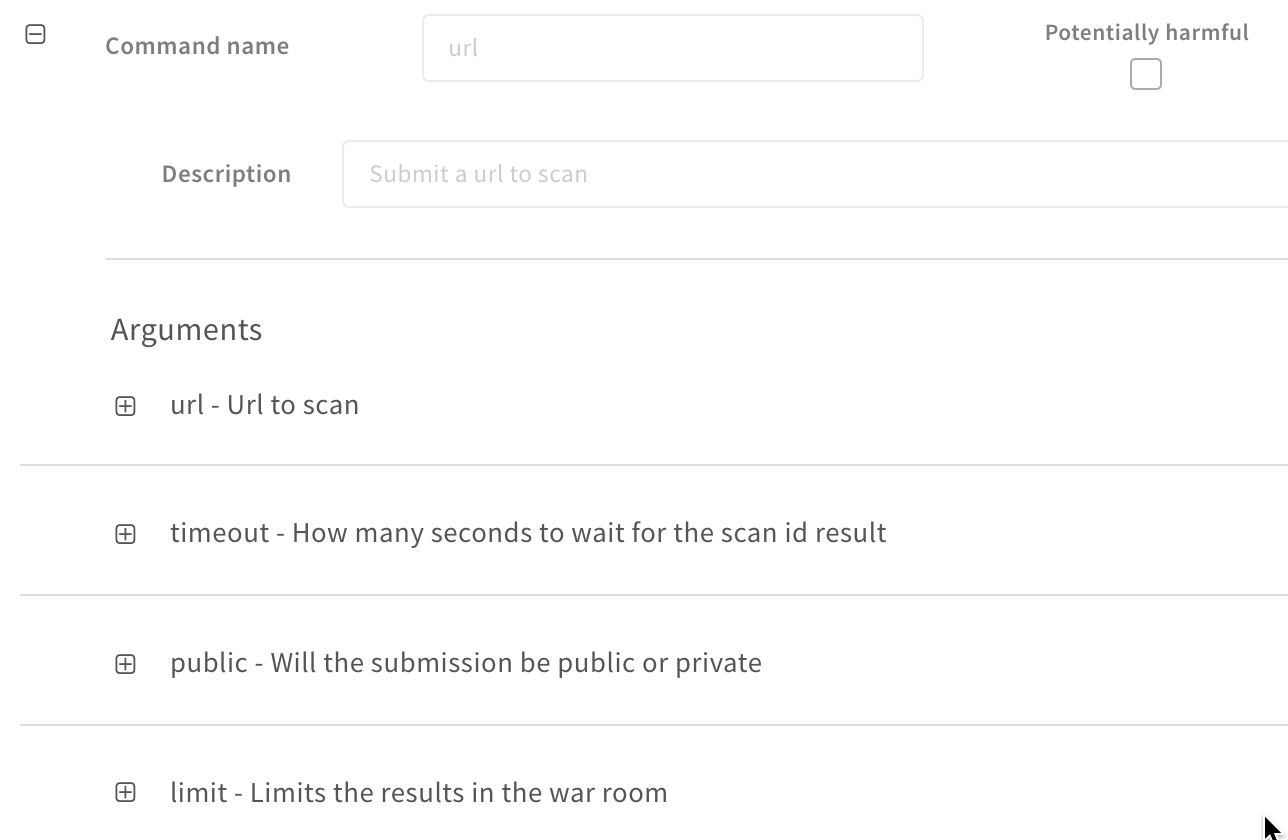

For more details on these two command argument properties look at the yaml-file-integration in our docs folder.

test-module

  • When users click the Test button, the test-module will execute when the Test button pressed in the integration instance setting page.
  • If the test module returns the string "ok" then the test will be green (success). All other string will be red.
if demisto.command() == 'test-module':
# This is the call made when pressing the integration Test button.
result = test_module(client)
return_results(result)
def test_module(client):
"""
Returning 'ok' indicates that the integration works like it suppose to. Connection to the service is successful.
Args:
client: HelloWorld client
Returns:
'ok' if test passed, anything else will fail the test
"""
result = client.say_hello('DBot')
if 'Hello DBot' == result:
return 'ok'
else:
return 'Test failed because ......'

fetch-incidents

These are the best practices for defining fetch-incidents.

  • The fetch-incidents function will be executed when the Fetch incidents checkbox is selected in the integration settings. This function will be executed periodically.
  • The fetch-incidents function must be unit testable.
  • Should receive the last_run param instead of executing the demisto.getLastRun() function.
  • Should return next_run back to main, instead of executing demisto.setLastRun() inside the fetch_incidents function.
  • Should return incidents back to main instead of executing demisto.incidents() inside the fetch_incidents function.
def fetch_incidents(client, last_run, first_fetch_time):
"""
This function will execute each interval (default is 1 minute).
Args:
client: HelloWorld client
last_run: The greatest incident created_time we fetched from last fetch
first_fetch_time: If last_run is None then fetch all incidents since first_fetch_time
Returns:
next_run: This will be last_run in the next fetch-incidents
incidents: Incidents that will be created in Cortex XSOAR
"""
# Get the last fetch time, if exists
last_fetch = last_run.get('last_fetch')
# Handle first time fetch
if last_fetch is None:
last_fetch, _ = dateparser.parse(first_fetch_time)
else:
last_fetch = dateparser.parse(last_fetch)
latest_created_time = last_fetch
incidents = []
items = client.list_incidents()
for item in items:
incident_created_time = dateparser.parse(item['created_time'])
incident = {
'name': item['description'],
'occurred': incident_created_time.strftime('%Y-%m-%dT%H:%M:%SZ'),
'rawJSON': json.dumps(item)
}
incidents.append(incident)
# Update last run and add incident if the incident is newer than last fetch
if incident_created_time > latest_created_time:
latest_created_time = incident_created_time
next_run = {'last_fetch': latest_created_time.strftime(DATE_FORMAT)}
return next_run, incidents
def main():
"""
SOME CODE HERE
"""
try:
client = Client(
base_url=server_url,
verify=verify_certificate,
auth=(username, password),
proxy=proxy)
if demisto.command() == 'fetch-incidents':
# Set and define the fetch incidents command to run after activated via integration settings.
next_run, incidents = fetch_incidents(
client=client,
last_run=demisto.getLastRun(),
first_fetch_time=first_fetch_time)
demisto.setLastRun(next_run)
demisto.incidents(incidents)
# Log exceptions
except Exception as e:
return_error(f'Failed to execute {demisto.command()} command. Error: {str(e)}')

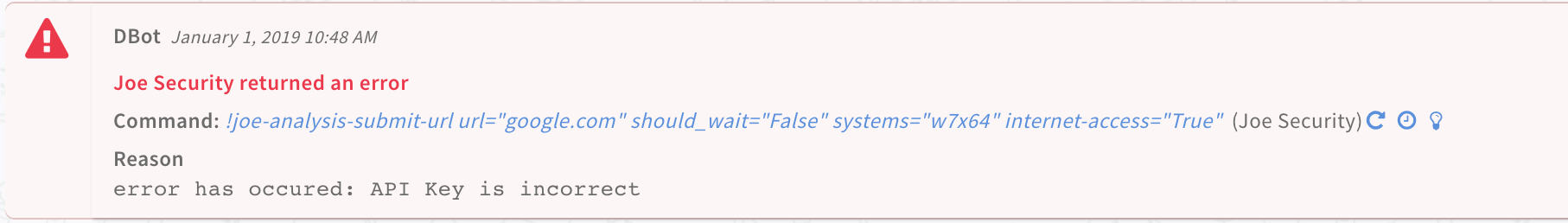

Exceptions and Errors

These are the best practices for defining the exceptions and errors.

  • To avoid unexpected issues, it is important to wrap your command block in a "Try-Catch". See the example below.
  • Raise exceptions in the code where needed, but in the main catch them and use the return_error function. This will enable acceptable error messages in the War Room, instead of stack trace.
  • If the return_error second argument is error, you can pass Exception object.
  • You can always use demisto.error("some error message") to log your error.
def main():
try:
if demisto.command() == 'test-module':
test_get_session()
return_results('ok')
if demisto.command() == 'atd-login':
return_results(get_session_command(client, demisto.args()))
except Exception as e:
return_error(f'Failed to execute {demisto.command()} command. Error: {str(e)}')

Unit Tests

Every integration must have unit tests.

  • Unit tests must be in a separate file, which should have the same name as the integration but be appended with _test.py for example HelloWorld_test.py
  • To mock http requests use requests_mock.
  • For mocks use mocker.

For example:

from HelloWorld import Client, say_hello_command, say_hello_over_http_command
def test_say_hello():
client = Client(
base_url="https://test.com",
verify=False,
auth=("test", "test"),
proxy=False)
args = {
"name": "DBot"
}
results = say_hello_command(client, args)
assert results.outputs == {
'name': 'DBot',
'hello': "Hello DBot"
}
assert results.outputs_prefix == 'HelloWorld.Result'
assert results.outputs_key_field == 'name'
def test_say_hello_over_http(requests_mock):
mock_response = {"result": "Hello DBot"}
requests_mock.get("https://test.com/api/v1/suffix/hello/Dbot", json=mock_response)
client = Client(
base_url="https://test.com",
verify=False,
auth=("test", "test"),
proxy=False)
args = {
'name': 'DBot'
}
results = say_hello_over_http_command(client, args)
assert results.outputs == {
'name': 'DBot',
'hello': 'Hello DBot'
}
assert results.outputs_prefix == 'HelloWorld.Result'
assert results.outputs_key_field == 'name'

Variable Naming

When naming variables use the following convention.

Do this:

variable_name

Do not do this:

variableName

Outputs

Make sure you read and understand Context and Outputs.

Make sure you follow our context standards when naming indicator outputs.

Linking Context

Wherever possible, we try to link context together. This will prevent a command from overwriting existing data, or from creating duplicate entries in the context. To do this, observe the following:

ec = ({
'URLScan(val.URL && val.URL == obj.URL)': cont_array,
'URL': url_array,
'IP': ip_array,
'Domain': dom_array
})

In this instance, the val.URL && val.URL == obj.URL links together the results retrieved from this integration with results already in the context where the value of the URL is the same. For more information about the syntax of linking and Cortex XSOAR Transform Language in general have a look here

Logging

In some cases, it may be necessary to pass information to the logs to assist future debugging.

First, we need to ensure that the debug level logging is enabled. Go to Settings -> About -> Troubleshooting and select Debug for Log Level.

To post to the logs, we use the following:

demisto.debug('DEBUG level - This is some information we want in the logs')
demisto.info('INFO level - This is some information we want in the logs')
demisto.error('ERROR level - This is some information we want in the logs')

You can also use the @logger decorator in Cortex XSOAR. When the decorator is placed at the top of each function, the logger will print the function name as well as all of the argument values to the LOG.

@logger
def get_ip(ip):
ip_data = http_request('POST', '/v1/api/ip' + ip)
return ip_data

Do No Print Sensitive Data to The Log

This section is critical.When an integration is ready to be used as part of a public release (meaning you are done debugging it), we ALWAYS remove print statements that are not absolutely necessary.

Dates

We do not use epoch time for customer facing results (Context, Human Readable, etc.). If the API you are working with requires the time format to be in epoch, then convert the date string into epoch as needed. Where possible, use the human readable format of the date %Y-%m-%dT%H:%M:%S

time_epoch = 499137720
formatted_time = timestamp_to_datestring(time_epoch, "%Y-%m-%dT%H:%M:%S")
print(formatted_time)
>>> '1985-10-26T01:22:00'

Note: If the response returned is in epoch, it is a best practice to convert it to %Y-%m-%dT%H:%M:%S.

Common Server Functions

Before writing a function that seems like a workaround for something that should already exist, check the script helper to see if a function already exists. Examples of Common Server Functions are noted below:

fileResult

This will return a file to the War Room by using the following syntax:

filename = "foo.txt",
file_content = "hello foo"
return_results(fileResult(filename, file_content))

You can specify the file type, but it defaults to "None" when not provided.

tableToMarkdown

This will transform your JSON, dict, or other table into a Markdown table.

name = 'Sample Table'
t = {'first':'Foo', 'second': 'bar', 'third': 'baz', 'forth': ''}
headers = ['Input', 'Output']
tableToMarkdown(name, t, headers=headers, removeNull=True)

The above will create the table seen below: | Input | Output | |---|---| | first | foo | | second | bar | | third | baz |

In the War Room, this is how a table will appear:

You may also use headerTransform to convert the existing keys into formatted headers.

demisto.command()

demisto.command() is typically used to tie a function to a command in Cortex XSOAR, for example:

if demisto.command() == 'ip':
ip_search_command()

demisto.params()

demisto.params() returns a dict of parameters for the given integration. This is used to grab global variables in an integration, for example:

APIKEY = demisto.params().get('apikey')
ACCOUNT_ID = demisto.params().get('account')
MODE = demisto.params().get('mode')
INSECURE = demisto.params().get('insecure')

demisto.args()

demisto.args() returns a dict of arguments for a given command. We use this to get non-global variables, for example:

url = demisto.args().get('url')

The argument above can be seen in the integration settings as shown below:

After the command is executed, the arguments are displayed in the War Room as part of the command, for example:

CommandResults

This class is used to return outputs. This object represents an entry in warroom.

ArgTypeDescription
outputs_prefixstrShould be identical to the prefix in the yml contextPath in yml file. for example: CortexXDR.Incident
outputs_key_fieldstrPrimary key field in the main object. If the command returns Incidents, and of the properties of Incident is incident_id, then outputs_key_field='incident_id'
outputsobjectThe data to be returned and will be set to context
human_readablestr(Optional) markdown string that will be presented in the warroom, should be human readable - (HumanReadable) - if not set, readable output will be generated via tableToMarkdown function
raw_responseobject(Optional) must be dictionary, if not provided then will be equal to outputs. Usually must be the original raw response from the 3rd party service (originally Contents)
indicatorslistMust be list of Indicator types, like Common.IP, Common.URL, Common.File, Common.Domain, Common.CVE.

Example

results = CommandResults(
outputs='VirusTotal.IP',
outputs_key_field='Address',
outputs={
'Address': '8.8.8.8',
'ASN': 12345
}
)
return_results(results)

Note: More examples on how to return results, here

return_results

return_results() calls demisto.results(). It accept CommandResults object or any object that demisto.results can accept. Use return_results to return mainly CommandResults object or basic string.

Example

results = CommandResults(
outputs='VirusTotal.IP',
outputs_key_field='Address',
outputs={
'Address': '8.8.8.8',
'ASN': 12345
}
)
return_results(results)
return_results('Hello World')

Note: More examples on how to return results, here

return_error

Note: Will return error entry to the warroom and will call sys.exit() - meaning the script will stop.

return_error(message="error has occurred: API Key is incorrect", error=ex)

Will produce an error in the War Room, for example:

DEPRECATED - demisto.results()

Note: Use return_results instead

demisto.results() returns entries to the warroom from an integration command or an automation. A typical example of returning an entry from an integration command looks as follows:

demisto.results(
{
'Type': EntryType.NOTE,
'ContentsFormat': EntryFormat.TEXT,
'Content': res,
'HumanReadable': 'Submitted file is being analyzed.',
'ReadableContentsFormat': EntryFormat.MARKDOWN,
'EntryContext': entry_context,
'IndicatorTimeline': timeline
}
)

The entry is composed of multiple components.

  • The Type dictates what kind of entry is returned to the warroom. The available options as of today are shown in the dictionary keys of EntryType below.

  • The ContentsFormat dictates how to format the value passed to the Content field, the available options can be seen below.

  • The Content usually takes the raw unformatted data - if an API call was made in a command, then typically the response from the request is passed here.

  • The HumanReadable is the textual information displayed in the warroom entry.

  • The ReadableContentsFormat dictates how to format the value passed to the HumanReadable field.

  • The EntryContext is the dictionary of context outputs for a given command. For more information see Outputs.

  • The IndicatorTimeline is an optional field (available from Server version 5.5.0 and up) . It is only applicable for commands that operate on indicators. It is a dictionary (or list of dictionaries) of the following format:

    {
    'Value': indicator_value, # for example, an IP address like '8.8.8.8'
    'Message': 'ExampleVendor marked the IP address 8.8.8.8 as "Good"',
    'Category': 'Integration Update'
    }

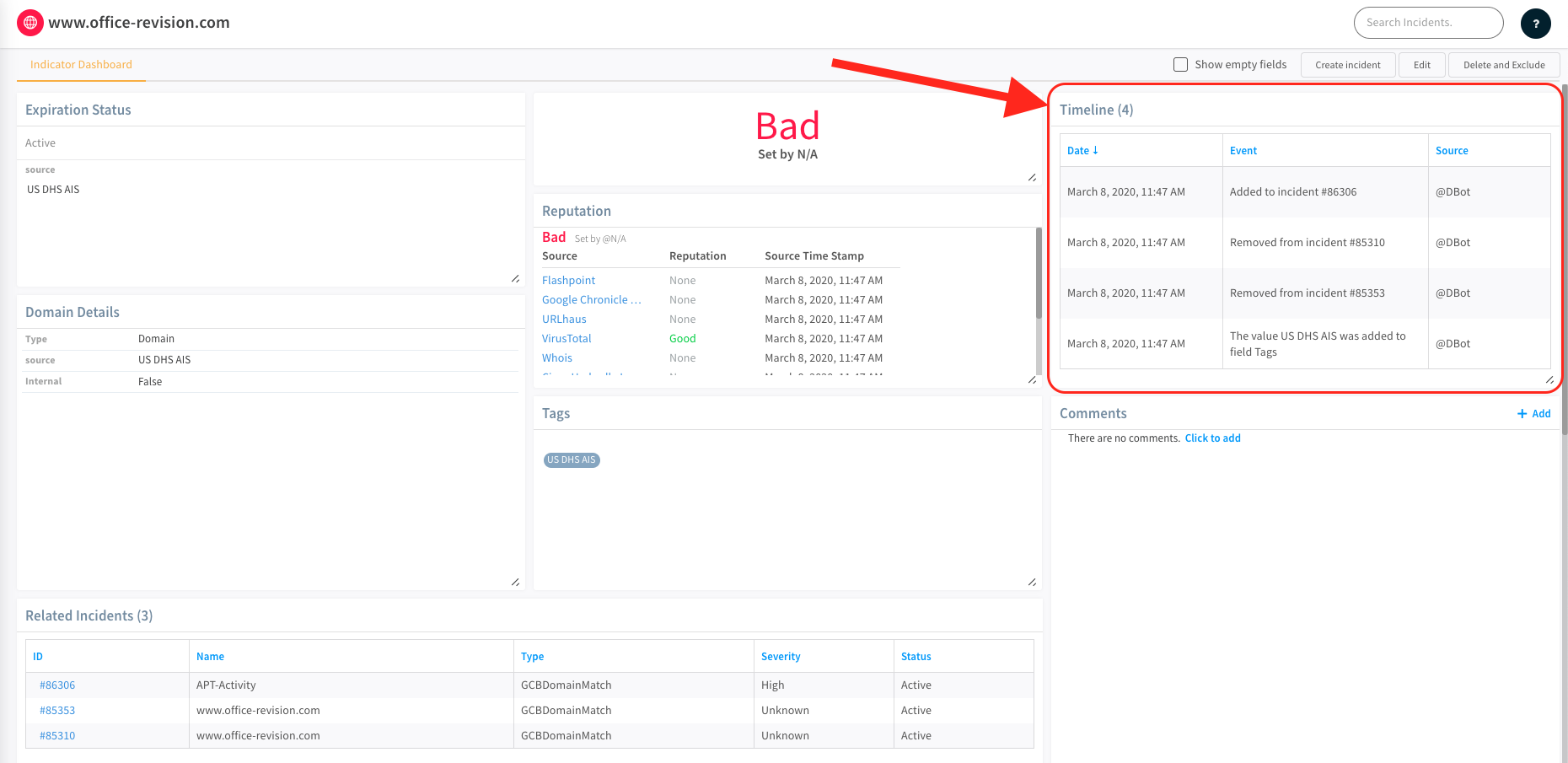

    When IndicatorTimeline data is returned in an entry, the timeline section of the indicator whose value was noted in the timeline data will be updated (and is viewable in the indicator's view page in Cortex XSOAR as can be seen in the attached image).

    What value should be used for the 'Category' field of a timeline data object?
    Any Cortex XSOAR integration command that returns timeline data should include the 'Category' value of 'Integration Update'. When returning timeline data from a Cortex XSOAR automation, the value passed to the 'Category' field should be 'Automation Update'.

    So when should one include a timeline object in an entry returned to the war room?
    The answer is any time that a command operates on an indicator. A good indicator (pun intended?) of when timeline data should be included in an entry is to look and see if the command returns a DBotScore or entities as described in our context standards documentation to the entry context. A common case is reputation commands, i.e. !ip, !url, !file, etc. When implementing these commands in integrations, timeline data should be included in the returned entry. To see an example of an integration that returns entries with timeline data, take a look at our AbuseIPDB integration.

The EntryType and EntryFormat enum classes are imported from CommonServerPython and respectively appear as follows:

class EntryType(object):
NOTE = 1
DOWNLOAD_AGENT = 2
FILE = 3
ERROR = 4
PINNED = 5
USER_MANAGEMENT = 6
IMAGE = 7
PLAYGROUND_ERROR = 8
ENTRY_INFO_FILE = 9
WARNING = 11
MAP_ENTRY_TYPE = 15
WIDGET = 17
class EntryFormat(object):
HTML = 'html'
TABLE = 'table'
JSON = 'json'
TEXT = 'text'
DBOT_RESPONSE = 'dbotCommandResponse'
MARKDOWN = 'markdown'

DEPRECATED - return_outputs

Note: Use return_results instead

return_outputs() is a convenience function - it is simply a wrapper of demisto.results() used to return results to the War Room and which defaults to the most commonly used configuration for entries, only exposing the most functional parameters for the sake of simplicity. For example:

def return_outputs(readable_output, outputs=None, raw_response=None, timeline=None):
"""
This function wraps the demisto.results(), makes the usage of returning results to the user more intuitively.
:type readable_output: ``str``
:param readable_output: markdown string that will be presented in the warroom, should be human readable -
(HumanReadable)
:type outputs: ``dict``
:param outputs: the outputs that will be returned to playbook/investigation context (originally EntryContext)
:type raw_response: ``dict`` | ``list``
:param raw_response: must be dictionary, if not provided then will be equal to outputs. usually must be the original
raw response from the 3rd party service (originally Contents)
:type timeline: ``dict`` | ``list``
:param timeline: expects a list, if a dict is passed it will be put into a list. used by server to populate an
indicator's timeline
:return: None
:rtype: ``None``
"""
return_outputs(
"## Some h2 header",
{"some": "json into context"},
{"some": "raw JSON/dict"},
{'Value': 'some indicator', 'Message': 'Some message', 'Category': 'Integration Update'}
)

AutoExtract

As part of demisto.results() there is a field called IgnoreAutoExtract, which prevents the built-in auto-extract tool from enriching IPs, URLs, files, and other indicators from the result. For example:

demisto.results({
'Type': entryTypes['note'],
'ContentsFormat': formats['text'],
'Contents': command_id,
'HumanReadable': message,
'IgnoreAutoExtract': True,
'EntryContext': {
'SEPM.Quarantine': context
}
})

Note: By default, IgnoreAutoExtract is set to False.

Quality Examples of Integrations

Last updated on
